Applications :

• Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0

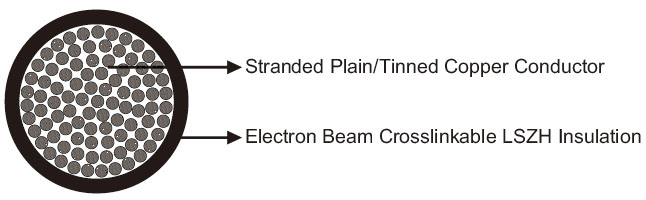

Construction :

• Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
• Insulation : Electron beam crosslinkable thin wall LSZH compound.

Optional :

• FRA-TW-1SU-FR (Fire resistant & Unsheathed)

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	0.5	0.6	0.75	1.0	1.2	1.5	2.0	2.5	4.0
  Maximum Conductor Resistance	Ω/km	40.1	33.4	26.7	20.0	16.3	13.7	11.2	8.21	5.09
  Voltage Rating	KV	0.6/1.0

Mechanical and Thermal Properties :

• Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
• Temperature Range : -40°C to +120°C.

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-TW-1SU-1C0.5S	1×0.5	19/0.18	0.3	1.4	5.8
FRA-TW-1SU-1C0.6S	1×0.6	19/0.20	0.3	1.5	7
FRA-TW-1SU-1C0.75S	1×0.75	19/0.22	0.3	1.6	8.4
FRA-TW-1SU-1C1S	1×1.0	19/0.26	0.3	1.75	10
FRA-TW-1SU-1C1.2S	1×1.2	19/0.28	0.3	2.0	13
FRA-TW-1SU-1C1.5S	1×1.5	19/0.30	0.3	2.15	16
FRA-TW-1SU-1C2S	1×2.0	37/0.25	0.4	2.4	19
FRA-TW-1SU-1C2.5S	1×2.5	19/0.40	0.4	2.75	26
FRA-TW-1SU-1C4S	1×4.0	56/0.30	0.4	3.35	40







Impact Resistant	Highly Flexible	UV Resistant	Oil Resistant	Weather Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
